Kona Process X CR/DL Frame
110,000৳

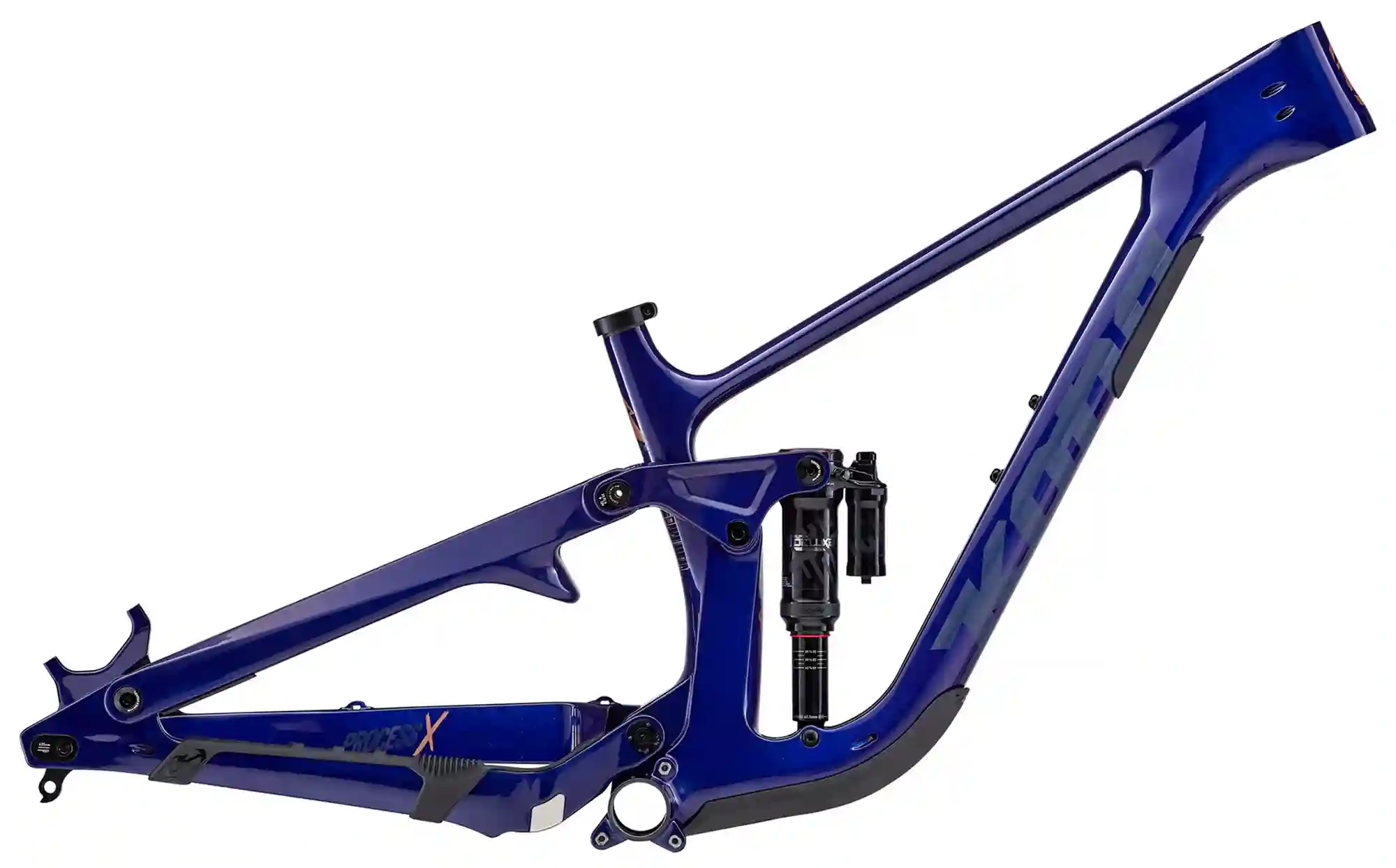

Kona Process X CR/DL Frame
Trust The Process
A true monster on the trails. Enduro bikes are designed to shred all the way down the mountain and can still climb back to the top if you want. The Kona Process X CR/DL Frame is ready to get built into a race-ready mountain bike. This carbon fiber frame uses 170mm of travel on the front and 162mm of travel on the rear. The frame uses 29″ wheels on the front and rear and uses a 27.5″ wheel on the rear on the small size. It features internal cable routing, integrated frame protection, a pressfit bottom bracket, Boost hub spacing, and a water bottle cage mount on the inside of the main triangle. This frame comes with a RockShox Super Deluxe Ultimate Trunnion rear shock.
Features
- Kona carbon frame that is lightweight and highly durable
- Internal cable routing keeps the cables inside the frame
- Integrated frame protection protects the frame from rocks and other debris
- Water bottle cage mount on the inside of the main triangle
| Frame | Kona Carbon |
|---|---|
| Wheel Size | 29″ (27.5″ Rear on Size Small) |
| Fork | 170mm Travel |
| Rear Shock | RockShox Super Deluxe Ultimate Trunnion |
| Headset Included | No |
| Headtube Diameter | 1-1/8″ – 1.5″ ZS |
| Front Derailleur Type | The Type That Doesn’t Exist |
| Bottom Bracket Type | PF92 |
| Seatpost Diameter | 31.6mm |
| Seat Clamp | Kona Clamp |
| Dropout Style | 12x148mm Boost |
| Accessory Mounts | Water Bottle Cage Mount |
| Cable routing | Internal |
| Intended Use | Enduro |
| Weight | N/A |
Note: Components are subject to change without notice.
| Size | Small | Medium | Large | Extra Large |
|---|---|---|---|---|
| A: Seat Tube Length | 380 | 380 | 420 | 450 |
| B: Effective Top Tube | 569 | 594 | 623 | 662 |
| C: Stack | 615 | 615 | 625 | 635 |
| D: Reach | 440 | 465 | 490 | 525 |
| E: BB Height | 345 | 345 | 345 | 345 |
| F: BB Drop | 20 | 30 | 30 | 30 |
| G: Head Tube Length | 94 | 94 | 105 | 116 |
| H: Head Tube Angle | 63.5 ° | 63.5 ° | 63.5 ° | 63.5 ° |
| I: Seat Tube Angle | 78.2 ° | 78.2 ° | 78 ° | 77.9 ° |
| J: Standover Height | 690 | 700 | 710 | 720 |
| K: Chainstay Length | 435 | 435 | 435 | 435 |
| L: Wheelbase | 1213 | 1238 | 1268 | 1308 |
| Frame Size | Small | Medium | Large | Extra Large |
|---|---|---|---|---|
| Rider Height | 5’0″ – 5’7″ | 5’2″ – 5’10” | 5’9″ – 6’2″ | 5’11” – 6’1″ |
